Entry No. 11 Interactive 3D learning lab
Airspace Lab
Orbit, slice and probe U.S. terminal airspace in 3D instead of memorizing a sectional.
- Status
- PrototypePublic source; no hosted copy yet
- Class
- Products & experiments
- Plates
- I
Outcome
Turns abstract Class B, C and D geometry into a spatial object a learner can interrogate.
spatial model3D
airspace classesB / C / D
knowledge checksinteractive
§ 1Why build it
Terminal airspace is usually taught as a stack of flat diagrams. The rules make more sense when the learner can move a probe through the actual volume and see what changes with position and altitude.
§ 2Interaction model
The lab combines orbit and profile cameras, altitude slicing, an aircraft probe, class comparisons and short knowledge checks in a focused Vite application.
- Direct manipulation instead of a passive animation.
- Profile and plan views connect vertical and horizontal limits.
- Progressive controls keep it useful on smaller screens.
- Minimal dependencies keep the experiment easy to inspect.

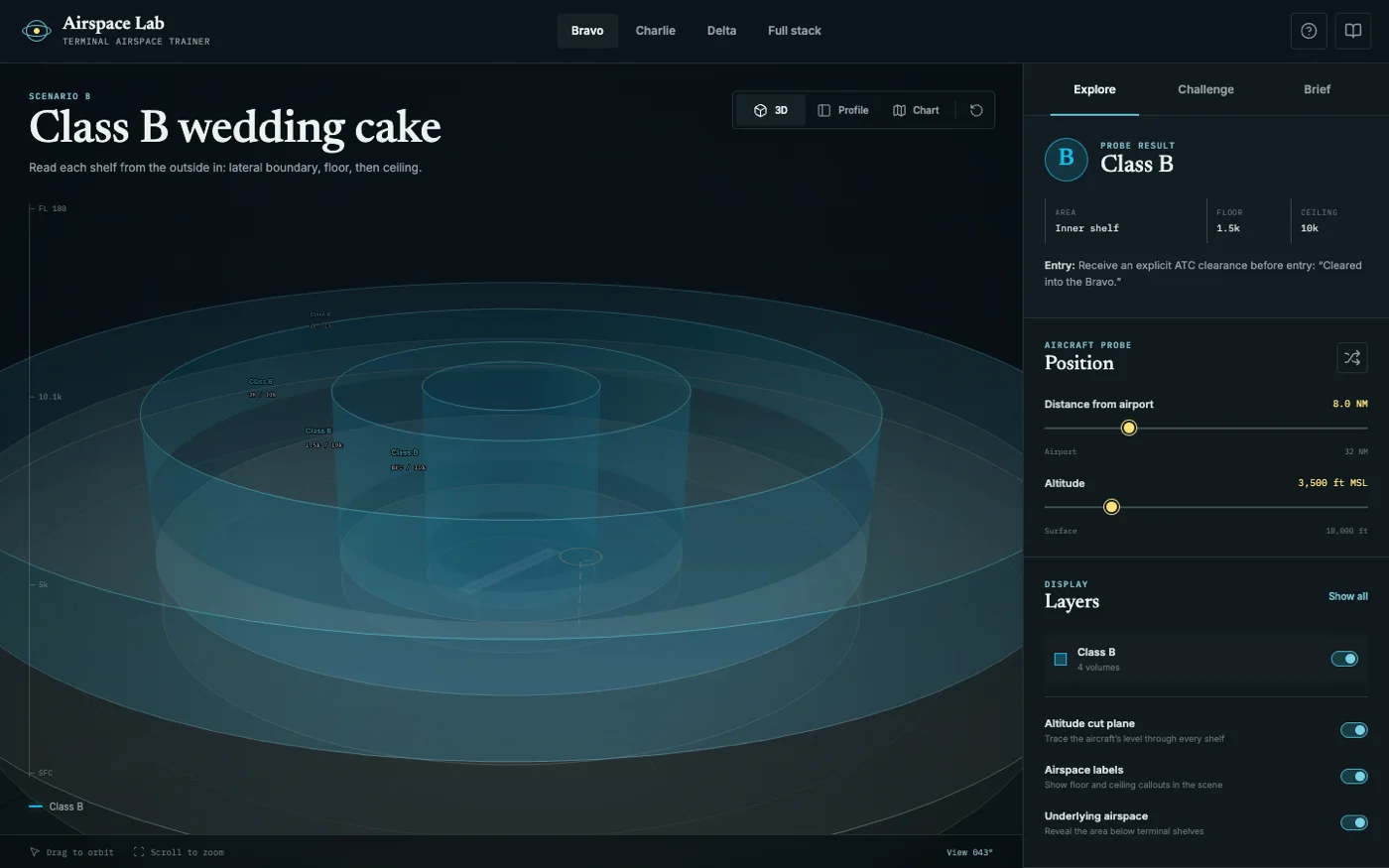

Plates Public evidence
Screenshots without surveillance.
Current public surfaces and privacy-safe crops. Select a plate to inspect it at full size.
